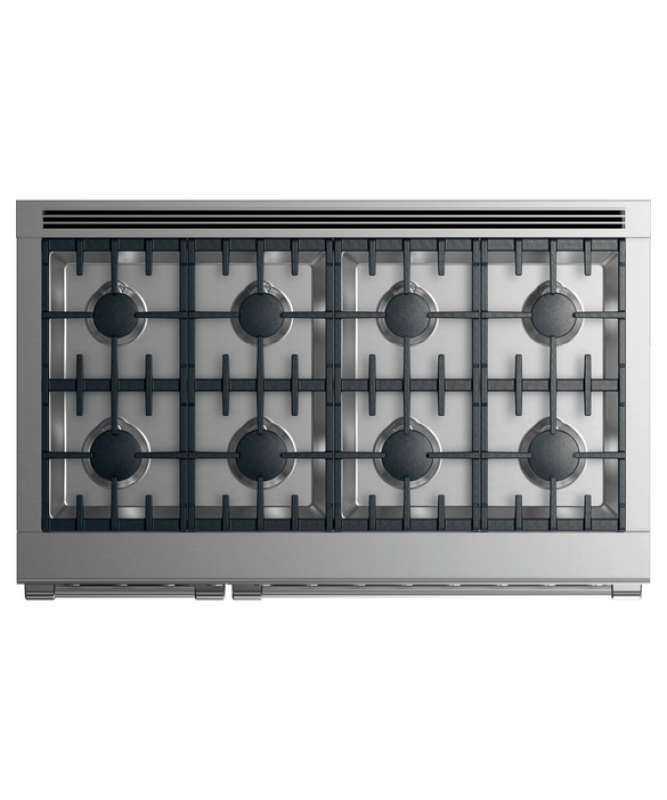

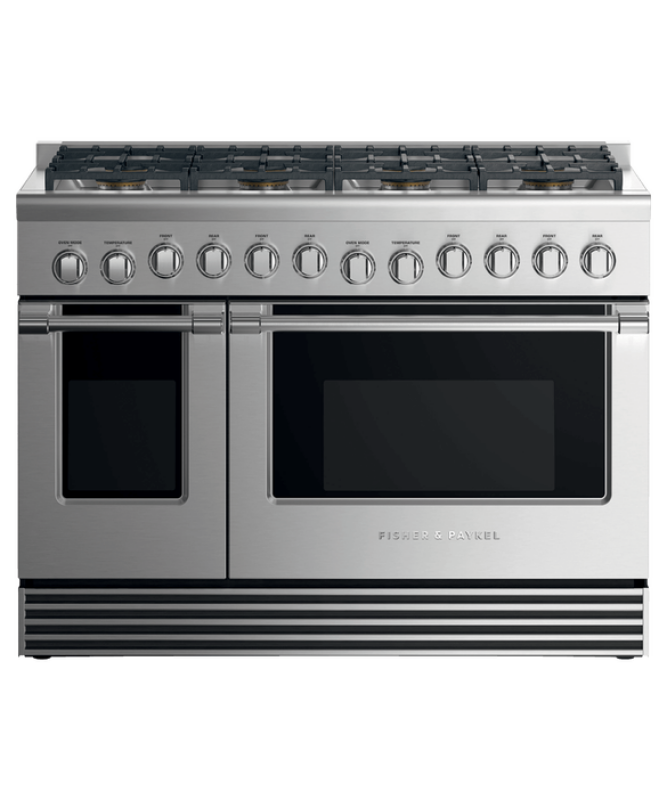

Gas Range, 48", 8 Burners, LPG - RGV2488LN
Color : Stainless Steel
Key Features
Cooktop power
Total control
Easy to clean
Instant visibility
Cooking flexibility
Consistent broiling
Available from Blue Sea, serving customers throughout .
Features
Cooktop power
Total control
Easy to clean
Instant visibility
Cooking flexibility
Consistent broiling
Specifications
| Fitting and pipe | ½ NPT, min. â…" Ø flex line |
| Supply Pressure (natural gas) | 6" to 9" W.C |
| Capacity total (AHAM) | 5.3 cu ft |
| Full extension telescopic racks | 3 |
| Shelf positions | 5 |
| Number of main oven functions | 3 |
| Main oven - Bake power | 28,000 BTU |
| Capacity usable (AHAM) | 3.9 cu ft |
| Main oven - Broil power | 19000 BTU |
| Secondary oven - Bake power | 18,000 BTU |
| Amperage | 15A |
| Supply frequency | 60Hz |
| Supply voltage | 120V |
| Depth | 29 1â„8" |
| Width | 47 7â„8" |
| Height | 35 3â„4 - 36 3â„4" |
| Sealed Dual Flow Burnersâ„¢ | 8 |
| Simmer on all burners | 140°F |
| Vent trim included | Flat vent trim |
| Max burner power | 23,500 BTU |
| Power back centre | 18,500 BTU (2) |
| Power back left | 18,500 BTU |
| Power back right | 18,500 BTU |
| Power front centre | 18,500 BTU (2) |
| Power front left | 23,500 BTU |
| Power front right | 23,500 BTU |
| Total cooktop power | 158,000 BTU |
| Combustible situation | BGRV2-3048H |
| Minimum CFM | 1,200 |
| Non combustible situation | BGRV2-3048 / BGRV2-1248 |
| Recommended hood | HCB48-12_N (48" Professional Range Hood, Dual Blower) |
| 3/4 Extension racks | 2 |
| Capacity total (AHAM) | 2.4 cu ft |
| Capacity usable (AHAM) | 1.7 cu ft |
| Shelf positions | 5 |
| Number of secondary oven functions | 2 |
| Parts and labor | Limited 2 years |
Gas requirements
| Fitting and pipe | ½ NPT, min. â…" Ø flex line |
| Supply Pressure (natural gas) | 6" to 9" W.C |
Main oven features
| Capacity total (AHAM) | 5.3 cu ft |
| Capacity usable (AHAM) | 3.9 cu ft |
| Full extension telescopic racks | 3 |
| Shelf positions | 5 |
Oven performance
| Main oven - Bake power | 28,000 BTU |
| Secondary oven - Bake power | 18,000 BTU |
| Main oven - Broil power | 19000 BTU |
| Bake | Yes |
| Bake | 28000 BTU |
Power requirements
| Supply frequency | 60Hz |
| Amperage | 15A |
| Supply voltage | 120V |
| Rated current | 15A |
Product dimensions
| Depth | 29 1â„8" |
| Height | 35 3â„4 - 36 3â„4" |
| Width | 47 7â„8" |
| Depth | 29 1/8" |
| Width | 47 7/8" |
| Height | 35 3/4 - 36 3/4" |
Rangetop features
| Simmer on all burners | 140°F |
| Vent trim included | Flat vent trim |
| Sealed Dual Flow Burnersâ„¢ | 8 |
| Sealed range top | Yes |
| Vent trim included | Yes |
Main oven functions
| Number of main oven functions | 3 |
Rangetop Performance
| Power back left | 18,500 BTU |
| Power front centre | 18,500 BTU (2) |
| Power front right | 23,500 BTU |
| Power back right | 18,500 BTU |
| Power back centre | 18,500 BTU (2) |
| Total cooktop power | 158,000 BTU |
| Max burner power | 23,500 BTU |
| Power front left | 23,500 BTU |
| Power back centre (2) | 18500 BTU |
| Power front centre (2) | 18500 BTU |
Recommended back guards and ventilation
| Recommended hood | HCB48-12_N (48" Professional Range Hood, Dual Blower) |
| Combustible situation | BGRV2-3048H |
| Non combustible situation | BGRV2-3048 / BGRV2-1248 |
| Minimum CFM | 1,200 |
Secondary oven features
| 3/4 Extension racks | 2 |
| Capacity total (AHAM) | 2.4 cu ft |
| Capacity usable (AHAM) | 1.7 cu ft |
| Shelf positions | 5 |
| Electronic oven control | Yes |
| Internal light | Yes |
Secondary oven functions
| Number of secondary oven functions | 2 |
| Proof | Yes |
| Bake | Yes |
Warranty
| Parts and labor | Limited 2 years |
| Parts | 2 Year |
| Labor | 2 Year |
Capacity
| Capacity total (AHAM) | 5.3cu ft |
| Capacity usable (AHAM) | 3.9cu ft |
| Shelf positions | 5 |
Controls
| Metal illuminated dials | Yes |
| Electric circuit | 3 wire |
Cleaning
| Dishwasher proof trivets | Yes |
Gas Requirements
| Fitting and pipe | ½ NPT, min. â…" ∅ flex line |
Installation Dimensions
| Height (excluding vent trim) | 35 3/4 - 36 3/4" |
Oven features
| Full extension telescopic sliding shelves | Yes |
Recommended Back Guards Ventilation
| Combustible situation | BGRV2-3048H |
| Minimum CFM | 1200 |
| Non combustible situation | BGRV2-3048 / BGRV2-1248 |
| Recommended hood | HCB48-12_N (48"" Professional Range Hood, Dual Blower) |
Safety
| Full extension telescopic sliding shelves | Yes |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 52 Inch |
| Shipping Height | 40 Inch |
| Shipping Length | 34 Inch |
| Shipping Weight | - |
| Total of Shipping Weight | - |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 27.61 ft³ |
| Dimensional Weight | 343.2 Ibs |
| Total of Cubes | 27.61 ft³ |
| Total of Dimensional Weight | 343.2 Ibs |
