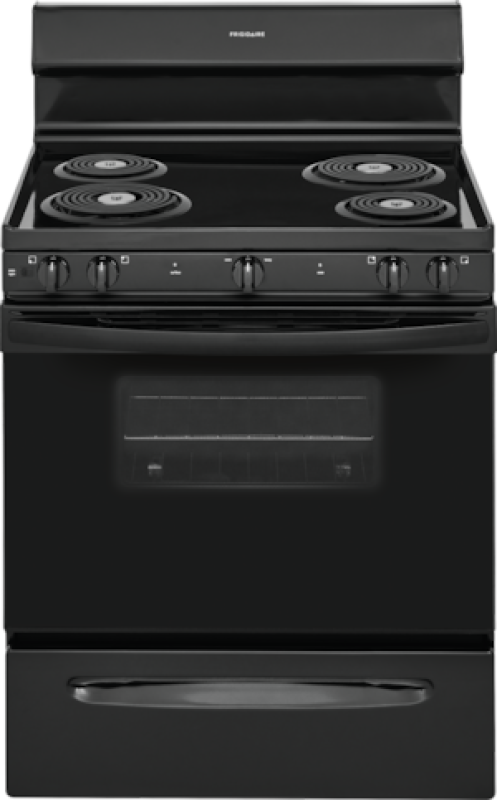

30'' Electric Range - FFEF3010UB
This product has been discontinued by the manufacture and is no longer available.
30'' Electric Range
Model: FFEF3010UB
This product has been discontinued by the manufacture and is no longer available.
30'' Electric Range
Model: FFEF3010UB
Color :
Available from Blue Sea, serving customers throughout .
Specifications
Specifications
General Specifications
| Installation Type | Free-Standing |
| Product Weight (lbs) | 135 |
| Size | 30'' |
| Power Type | Electric |
| Adjustable Leveling Legs | 4 Adjustable |
| Collection | Frigidaire |
Oven Specifications
| Oven 1 Interior Lighting | 1 Incandescent |
| Oven 1 Cleaning System | Manual Clean |
Exterior
| Control Panel Finish | Color-Coordinated Metal |
| Cooktop Finish | Color-Coordinated Porcelain |
| Drawer Finish | Color-Coordinated with Integrated Handle |
| Door Finish | Glass Color-Coordinated |
| Exterior Finish | Painted |
Certifications & Approvals
| Sabbath Mode | No |
| ADA Compliant | Yes |
| Agency Approval | UL |
Cooktop
| Bowl Type | Black Porcelain |
| Cooking Surface | Slabtop Coil with Black Porcelain Bowls |
| Hot-Surface Indicator Light | 1 Clear |
| Left Front | 8" - 2400 Watts |
| Element On Indicator Light | 1 Clear |
| Left Rear | 6" - 1500 Watts |
| Knob Color | Color-Coordinated |
| Knob Type | Plastic CC |
| Right Front | 6" - 1500 Watts |
| Right Rear | 8" - 2400 Watts |
| Cooktop Surface Type | coil |
Exterior Specifications
| Manifold Panel | Color-Coordinated |
Cooking Controls
| Broil | Yes |
| Bake | Yes |
| Automatic Oven (Delay Cook & Off) | No |
| Lower Drawer Controls | Storage |
| Cancel | No |
| Self-Clean | No |
| Lockout | No |
| Probe | No |
| Timed Bake | No |
| Timer | No |
| Timed Shut-off | No |
Dimensions Exterior
| Height | 47-3/4" |
| Depth | 25-3/4" |
| Width | 29-7/8" |
Electrical Specifications
| Connected Load (kW Rating) @ 240V | 11.5 / 8.5 |
| Minimum Circuit Required (Amps) | 40A |
| Power Supply Connection Location | Right Rear Bottom |
| Voltage Rating | 120V / 240V or 120V / 208V 60Hz |
Oven
| Baking System | Even Baking Technology |
| Bake | 2600 Watts |
| Broil | 3000 Watts |
| Broil System | Hi/Lo |
| Hidden Bake Element | No |
| Oven 1 Interior Width | 23" |
| Oven 1 Interior Height | 17" |
| Oven 1 Interior Depth | 18-3/4" |
| Oven 1 Rack Configuration | 2 Standard |
| Oven 1 Type | Main |
| Oven 1 Rack Positions | 5 positions |
| Oven 1 Window | Standard Visualite® |
Drawer
| Drawer Functionality | Storage |
| Handle | Integrated |
Capacities
| Total Capacity | 4.2 |
